CD30HPT 2.4G UAV Video and data radio Full Hd Wireless Transmitter Double Antenna design

Name: CD30HPT 24G UAV Video and data radio Full Hd Wireless Transmitter Double Antenna design
Brand: SUNTOR
Price: 1 USD

Quality CD30HPT 2.4G UAV Video and data radio Full Hd Wireless Transmitter Double Antenna design wholesale

Brand Name : SUNTOR

Model Number : CD30HPT

Place of Origin : Shenzhen, China

MOQ : 1 set

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1000 set/ month

Delivery Time : 7-15 days

Certification : FCC, CE, RoHS

Price : Negotiation

Packaging Details : Plastic Box

Weight : TX/RX 148/93g

Encryption : AES128Bit

Delay : 15-30ms

Modulation : COFDM

Range : 30km

RF Power : 1.5Watts

Bandwidth : 2/4/6/8Mhz

Video Input : High Definition Multimedia Interface/IP Camera/CVBS

Contact Now

CD30HPT Drone Video Transmitter & Receiver Specifi...

Introduction

CD30HPT is Micro COFDM Transmitter: This product is our company's latest micro COFDM 1080P HD wireless video transmission equipment,using advanced video pre-processing technologies and efficient video coding algorithms.
The device have refined on the improve of coding efficiency, reduced coding delay, algorithm optimization,anti-error rate and improve the quality of video, it can be used the lowest rate to achieve the best image compression.

Features:

Ultra-long transmission distance more than 30km
Support high speed move more than 600km/h
Level of broadcast TV/monitor's HD video encoding: High Definition Multimedia Interface/SDI/CVBS adaptive. 1080P/1080I/720P/576P adaptive.
Adjustable bandwidth 2/4/6/8Mhz: multi-bandwidth, multi-rate, multi-mode
Multiple encryption to avoide illegal reception
Small design: compact, light and integrated
Ultra low power consumption
Duplex data transmission support TTL/SBUS/PPM/RS232 protocol

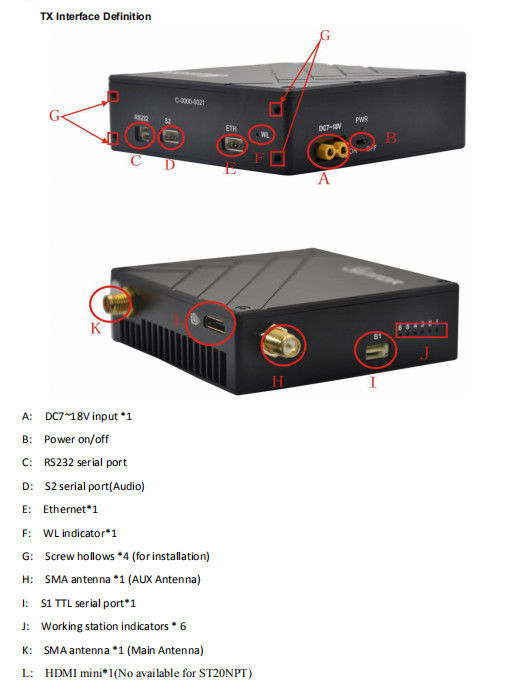

CD30HPT 2.4G UAV Video and data radio Full Hd Wireless Transmitter Double Antenna design

RX Interface Definition

CD30HPT 2.4G UAV Video and data radio Full Hd Wireless Transmitter Double Antenna design

Technical Parameters
Frequency Band	2402-2478Mhz
RF Power	1.5Watts
Sensitivity	-104dbm@2Mhz, -100dbm@4Mhz, -95dbm@8Mhz
Modulation Coding	QPSK/16QAM/64QAM, COFDM 4K/LDPC
Bandwidth	2/4/6/8Mhz
Forward Error Correction	1/2, 2/3, 3/4, 7/8
Protection Interval	1/4, 1/8, 1/16, 1/32
Distance	30km
Video Input	High Definition Multimedia Interface/IP Camera/CVBS: 1080/60P, 1080/50P, 1080/24P, 1080/60I, 1080/50I, 720/60P 720/50P, 720576/50I(PAL), 720480/60I(NTSC)
Video Output	High Definition Multimedia Interface/Ethernet
Video Stream	3-5Mbps(H.264+H.265)
Delay	15-30ms
Encryption	WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
RF Interface	SMA
Operating temperature	-40°C ~+85°C
Operating Voltage	DC7-18V
Current	Transmitter/Receiver: 1A/0.41A (@DC12V)
Size(Without Antenna)	TX: 767324mm/RX: 73x48x20mm
Weight(Without Antenna)	TX: 146g/RX: 93g
